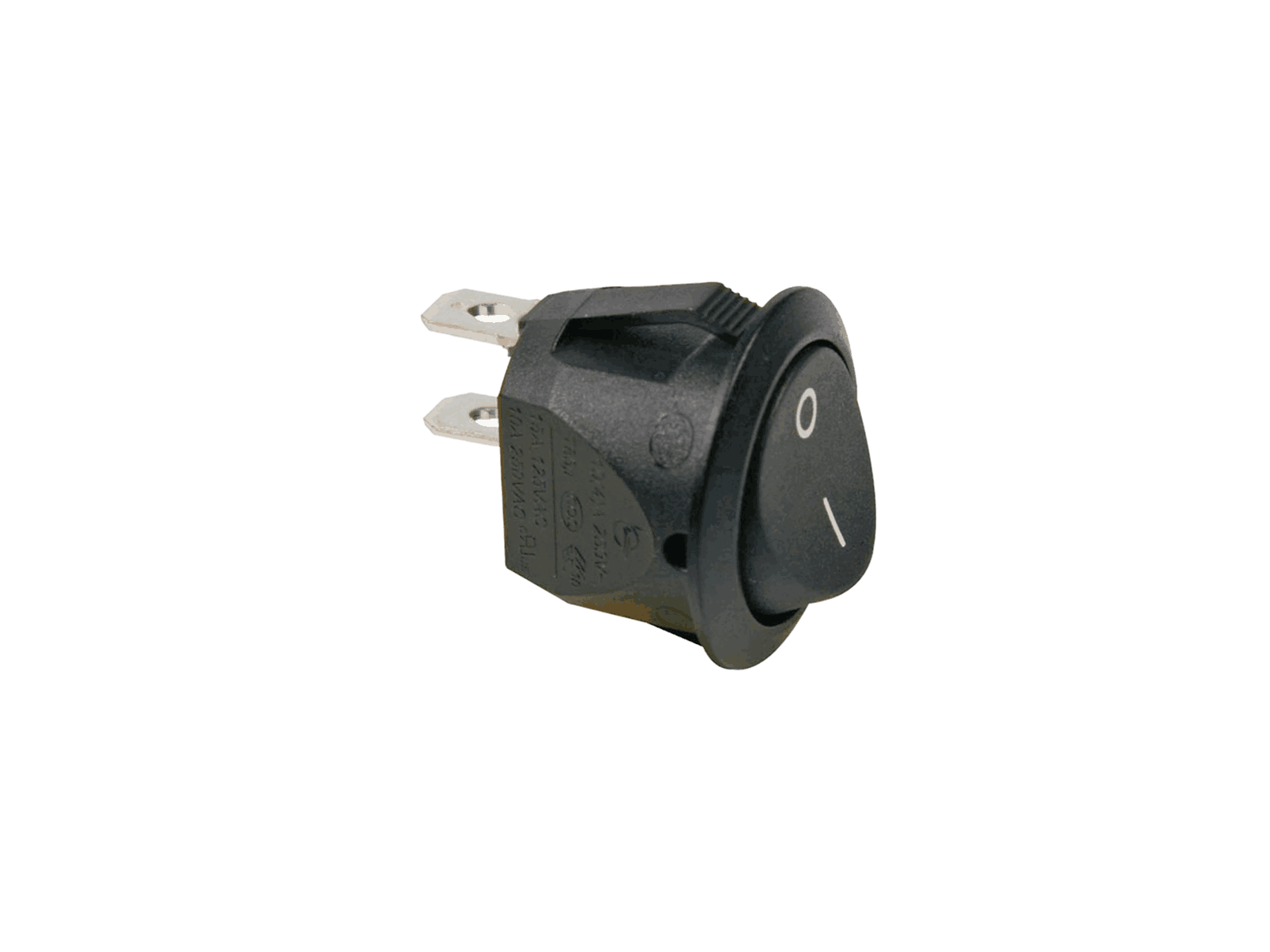

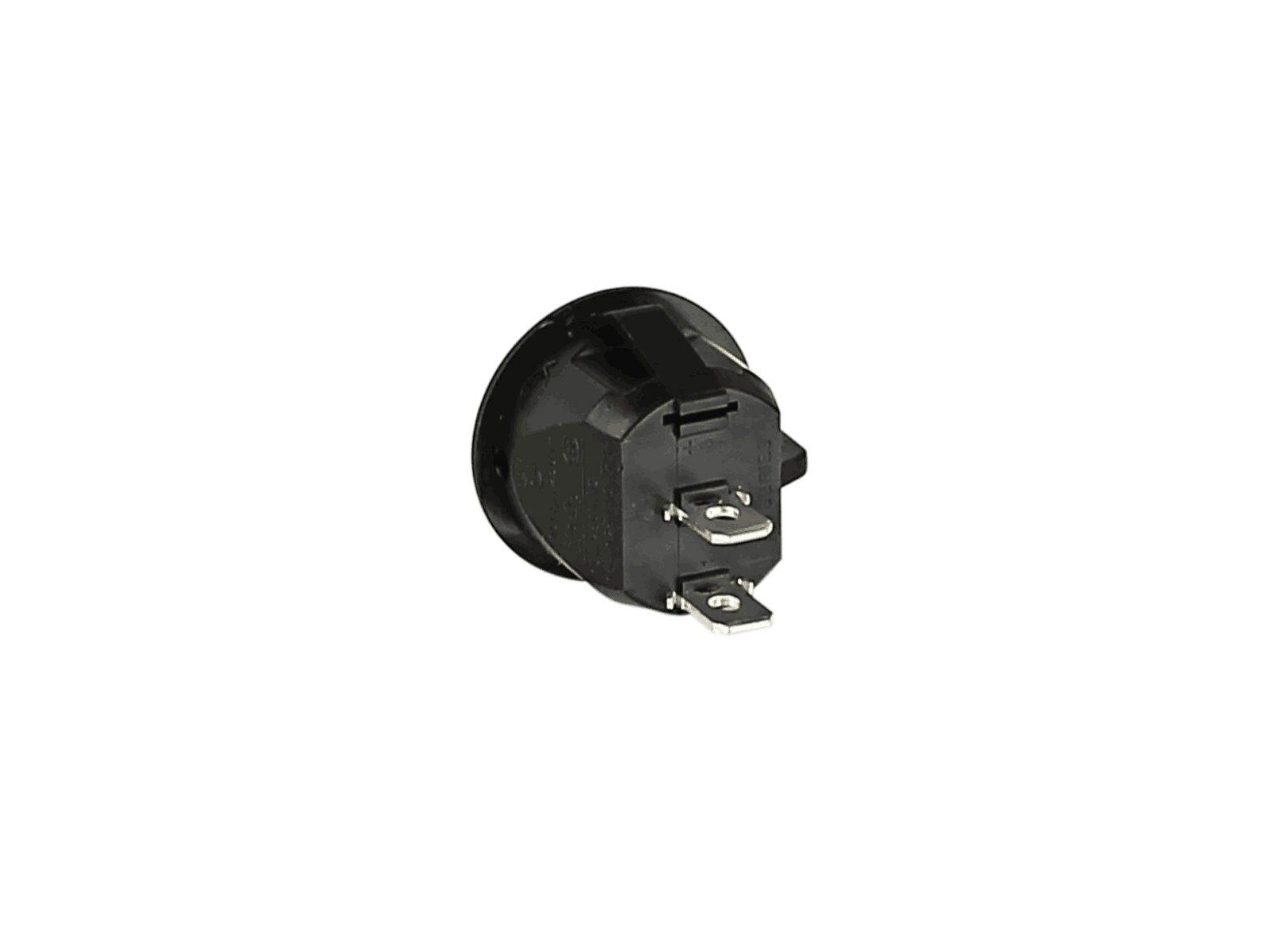

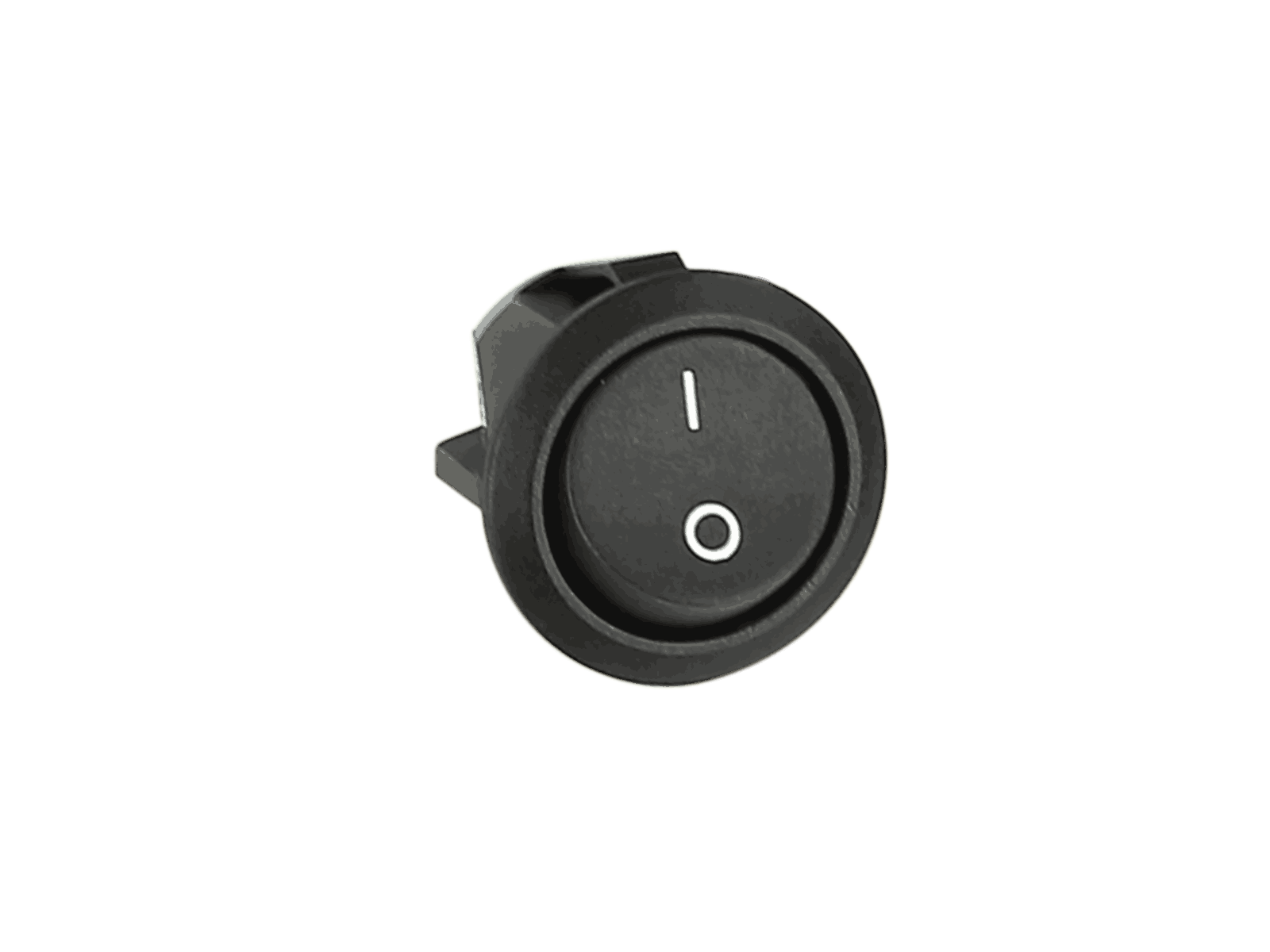

ACV bryter ON / OFF
Svart bryter ON/OFF
- Type: ON-OFF SPST 1P
- Rocker: black imprint I/O
- Connector: 4,8mm

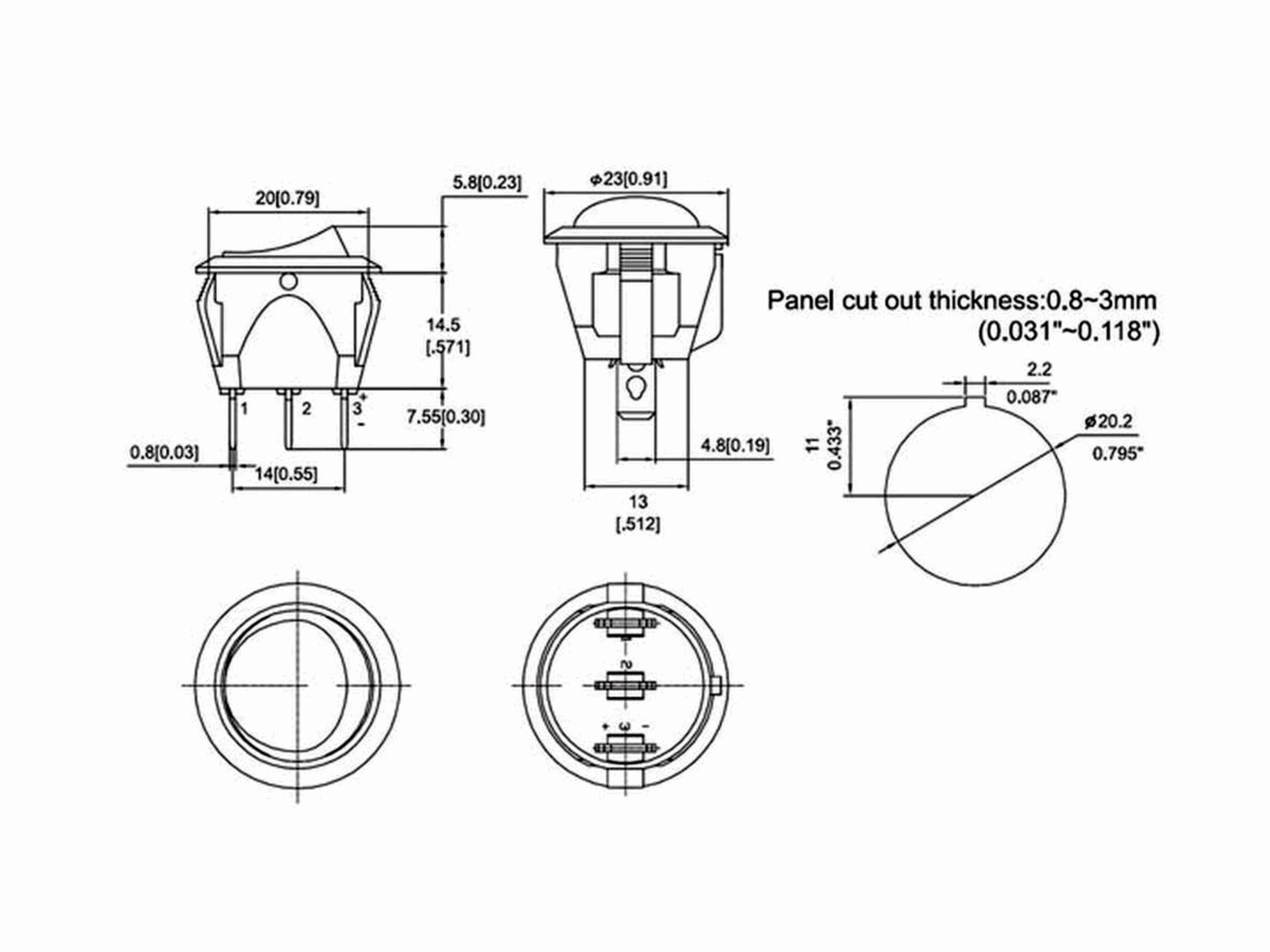

- Drilling: 20mm
Technical data:
Switching capacity: 5A/250Vac / 10A/125Vac
Electrical life: 10000 cycles at max.load
Mechanical life: 50000 cycles
Contact resistance: 20 Mohm
Insulation resistance: min. 1000Mohm
Dielectric strength: >,1500V: 1 minute
Material:
Housing: nylon PA66
rocker: nylon PA66 + Polycarbonat
moving contacts: copper, silver plated
static contacts: copper, silver plated
Terminals: copper, silver plated
Contact: with return spring
